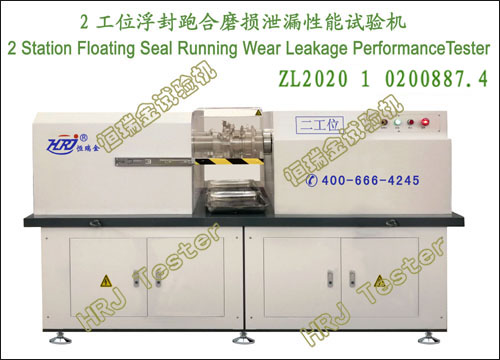

2工位浮封跑合磨损泄漏性能试验机
2 Station Floating Seal Running Wear Leakage Performance Tester
重要试验:
→2工位浮封跑合磨损泄漏性能试验机,用于2对浮封环组件静态密封性能试验、动态密封性能试验、可靠性试验、工作寿命试验。测试2对浮封环组件在运转跑合期的腐蚀与磨损程度,考核浮动油封在强化条件下使用可靠性程度。研究评定浮封耐久性能、可靠性程度和工作寿命。
→将2对浮动油封组件按照正常安装形式安装到试验机上,并在注入润滑油的状态下实现相对转动,浮封座为左右组对放置,一端回转,一端轴向加载。
→浮封旋转扭矩试验;浮封轴向加载力试验;实时扭矩测试、载荷测试、轴向力位移控制,绘制浮封温度-时间曲线,浮封扭矩-时间曲线,浮封轴力-扭矩曲线,试验力-位移曲线。
→浮封润滑油滴漏实时监控:试验过程发生润滑油滴漏,自动弹窗报警,自动停机并记录试验时长。
→浮封环温度实时监测:多点监测浮封环温度和润滑油温度,超温弹窗报警,自动停机并记录试验时长。
→工程机械的行走部件与行星减速部件上起端面动态密封功能的浮动油封跑合运转试验。
→浮动油封偏移加载试验机;浮封角度偏移加载试验;浮封偏轴偏移加载试验;浮封角度偏移加载和偏轴偏移加载组合试验;浮动油封跑合磨损偏轴偏移1.5mm,摆动角度偏移量0.5°～5°。
→浮动油封强化动态密封性能试验机;浮动油封实际使用工况4倍～5倍强化动态密封性能试验;浮动油封1500h强化动态密封性能试验;浮封1500h工作寿命强化试验;全封闭可拆卸浮封座沙箱,模拟油气水、粉尘、泥浆、盐碱液、石英砂、黏土砂粒等工况,保证转动试验过程中油气水、粉尘、黏土砂粒等不会泄漏。实时测量油温。
→浮封跑合磨损电子光学放大系统,观察浮封环跑和磨损情况,图像传至计算机显示放大,可拍照录像存储。
→急停开关及启动按钮可接入安全继电器,与电气及计算机软件联动控制。安士能安全门通过软件自动控制。
→2工位浮动油封跑合磨损泄漏性能试验机,用于过程流体动力学研究,流体机械密封结构力学研究,流体设备旋转接头密封材料研究,流体润滑理论研究。指导流体机械密封结构设计,石油化工流体搅拌机械装备研究设计,压力容器密封技术设计。
→浮动油封跑合磨损水平荷载推进系统,高速旋转驱动系统,红外温度监测系统,润滑油滴漏监控测量判断系统,HRJ-Test浮动油封跑合磨损泄漏性能软件系统。
→试验过程的自动控制、数据采集、处理、分析、存储及显示。
→过程再现和数据再分析、曲线放大、比较、遍历;曲线可自由放大和缩小;满度自调。
→操控软件,采用模块化、开放式编程、个性化设计,可自行调整。
→灵活的Excel或Word报告格式,可选择、指定、排序、单独、合并、多类型输出。
→浮动油封跑合磨损扭矩荷载容量2x（100N.m～200N.m）,浮动油封轴向荷载容量2x（3000N～5000N）。
→浮动油封跑合磨损动荷载频率0～20次/min。
→浮动油封跑合磨损正反向高速旋转速度30～300r/min,0～∞计数。
→浮动油封跑合磨损轴向水平载荷推进行程0～100mm,推进速率20～100mm/min。
→浮动油封跑合磨损温度测量0～300°C。
引用标准、文献文件:
→JB/T8293-2014浮动油封;GB/T14211-2019机械密封试验方法;GB/T37995-2019风力发电机组主传动链系统橡胶密封圈;GB/T33154-2025风力发电机偏航轴承及变桨轴承橡胶密封圈;GB/T24795.2-商用车车桥旋转轴唇形密封圈性能试验方法;JB/T6619.2-2018轻型机械密封试验方法;GB/T21283.4-密封件为热塑性材料的旋转轴唇形密封圈性能试验程序;GB/T21283.6-2015;MT/T784-2011采煤机械用DO型浮动油封;ISO 16589-4;ISO 23711;ISO 4635;ISO 9553;MT/T1165-2011;HG/T3326-采煤综合机械化设备用橡胶密封件胶料;HG/T3096-水闸橡胶密封件和橡塑复合密封件;GB/T23662-2022混凝土路段伸缩缝用橡胶密封件;GB/T5226.1-2019;JB/T7369-机械密封端面平面度检验方法;MT/T580-采煤机油封技术条件;NB/T20478.1-2018压水堆核电厂反应堆压力容器密封环技术规范O型密封环;JB/T5928-工程机械驱动桥试验方法;TB/T3419-铁道货车轴承油封;JB/T2984-履带式推土机和液压挖掘机托链轮;JB/T11959-机械密封用硬质合金密封环;JB/T11957-食品制药机械用机械密封;掘进机盘形滚刀摩擦磨损疲劳寿命试验测试系统;JB/T11985-工程机械用液压剪;GTCC-044-2018铁道货车轴承油封;JB/T11984-土方机械用轮边支承轴技术条件;JB/T10763-土方机械用刀片技术条件;JB/T12791-油封弹簧;JB/T10135-工程机械液力传动装置技术条件;JB/T8817-工程机械制动摩擦片技术条件;GB/T30911-汽车齿轮齿条式动力转向器唇形密封圈的性能试验方法;GB/T34028-2017发动机气门导杆往复油封及性能试验方法;GB/T31330-汽车循环球式动力转向器唇形密封圈的性能试验方法;GB/T10708.2-2000往复运动用双向密封橡胶密封圈;GB/T27800-2021静密封橡胶制品使用寿命的快速预测方法;GB/T36879-2018全断面隧道掘进机用橡胶密封圈;GB/T37210-2018耐核辐射充气和充水橡胶密封制品;GB/T27572-橡胶密封件110°C热水供应管道的管接口密封圈材料规范;GB/T10708.3-2000往复运动用橡胶防尘密封圈;GB/T25364.1-2021涡轮增压器密封环技术条件;YS/T60-2019硬质合金密封环毛坯;MT/T1164-液压支架立柱千斤顶密封件分类;GB/T10708.1-2000往复运动用单向密封橡胶密封圈;GB/T25364.2-2021涡轮增压器密封环检验方法;GB/T23658-弹性体密封圈输送气体燃料和烃类液体的管道和配件用密封圈的材料要求;MT/T985-煤矿用立柱和千斤顶聚氨酯密封圈技术条件;GB/T37996-动力锂电池用橡胶密封件;GB/T13871.1-2022密封元件为弹性体材料的旋转轴唇形密封圈尺寸公差;HG/T2810-往复运动橡胶密封圈材料;GB/T13871.4-2023密封件为弹性体材料的旋转轴唇形密封圈性能试验程序;GB/T13871.6-2022旋转轴唇形密封圈弹性体材料规范;GB/T28604-生活饮用水管道系统用橡胶密封件;JB/T8872-2016机械密封用碳石墨密封环技术条件;JC/T2402-2017船舶用液相烧结碳化硅陶瓷密封环;TB/T3102.4-机车车辆用曲面卡套式管接头橡胶密封环;TB/T3103.2-机车车辆用锥面卡套式管接头橡胶密封环;TB/T3103.22-机车车辆用锥面卡套式管接头O型橡胶圈;NB/T20478.2-2018压水堆核电厂反应堆压力容器密封环技术规范C型密封环;GB/T30912-汽车液压盘式制动缸用橡胶密封件;工程机械采煤机行走部件浮封油封动态密封试验;JB/T10463-真空磁流体动密封件;200N.m5000N浮封跑合磨损泄漏可靠性试验机;GB/T32217-液压往复运动密封件性能试验;10kN～1000kN浮封环密封荷载面压试验机;轻型旋转机械转动轴密封运转动态性能试验;5000h浮动油封磨损疲劳寿命试验机;平地机装载机浮封动态密封试验;离心浮封DO型浮封动态密封性能试验;￠50～220mm浮封跑合磨损试验机;￠227～500mm浮封磨损泄漏性能试验机;￠510～650mm浮封跑合动密封性能试验机;支重轮磨合跑合疲劳耐久寿命试验机;引导轮托链轮疲劳耐久性试验测试系统;齿轮箱磨合磨损泄漏性能试验机;2工位浮封环组件O形圈转动摩擦磨损试验机;密封圈模拟实际工况高低温压扭耐久试验机;履带密封圈疲劳耐久寿命试验机;工程机械车辆刹车制动压力扭矩试验机;300kN装载机挖掘力提升力试验机;交通运输车辆轮毂旋转弯矩振动加速度疲劳试验机;车轮轮毂旋转弯曲疲劳试验机;金属波纹管垂向横向二维高温压力疲劳试验机;锚杆锚固旋转搅拌轴力扭力疲劳循环伺服试验机;矿用锚杆锚索钢绞线静载抗拔拉伸综合试验机;无振动下拉上压伺服液压万能材料试验机;600kN钢绞线偏斜拉伸试验机;钢绞线钢筋PC钢棒高温应力腐蚀松弛试验机;钢丝高温应力腐蚀松弛试验机;工程机械重工装备运输车辆零部件组件动态疲劳试验机系统;特殊定制非标专用新型科学研究试验机测试系统;弹簧拉压扭转疲劳刚度力学性能试验机;线材材料螺栓部件构件扭转试验机;塑料加工工业制品非金属材料力学性能检测设备;橡塑制品非金属材料智慧可视化试验测试系统;铁路道岔转辙机挤脱力试验机;滚刀刀圈耐磨损抗冲击疲劳试验机;飞机轮对跑道交变冲击荷载耐久性测试系统;转向驱动桥变速箱差速器总成试验台;十工位汽车操纵线拉索线强度试验机;传动轴力矩限制器打滑力矩标定测试系统;200kN.m风力发电机组联轴器扭矩试验测试系统;联轴器膜片拉弯扭三维动力荷载疲劳试验系统;金属膜片拉摆扭三轴疲劳试验机系统;500kN.m联轴器扭矩预磨标定刚度疲劳试验台;浮动油封动态密封及可靠性试验三维力系统;海洋钻井杆磨损测试系统;10000N密封件摩擦磨损试验机;填料密封件高速高低温拉伸疲劳试验机;全髋关节膝关节假体磨损试验机;
