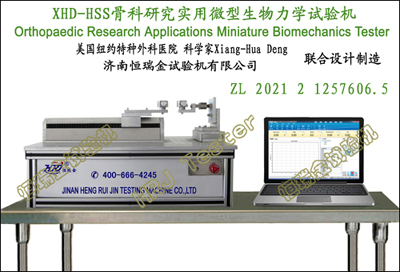

XHD-HSS骨科研究实用微型生物力学试验机
Orthopaedic Research Applications Miniature Biomechanics Tester

重要功能:
→用于小动物（兔子、大鼠和小鼠）的实验研究,对骨关节、肌腱、韧带进行生物力学试验和分析评价。对生物工程和生物移植材料进行生物力学测定和分析评价。提供生物力学试验和实验数据分析的专业技术培训与指导。
→XHD-HSS骨科研究实用微型生物力学试验机,微小生物材料拉伸试验、压缩试验、循环拉压试验。微小医学试件拉伸试验,自动求取最大试验力值、断裂力值、屈服强度、屈服点、抗拉强度,绘制力学试验曲线。
→临床医学研究评价、人工关节置换术生物力学研究、人工关节临床前测试、膝关节生物力学测试研究。
→组织工程研究测试、运动医学研究评价、脊柱生物力学研究测试、骨移植入物材料研究测试、骨组织移植与再生研究测试、足踝部生物力学测试研究、全膝关节置换假体设计生物力学测试研究、骨折固定和愈合的生物力学测试研究、软骨与骨组织工程学的生物力学测试研究。
→微循环力学测试研究、肌肉力学测试研究、骨骼力学测试研究、医用生物力学测试研究。

重要参数:
→拉压试验载荷容量100N/200N/400N/500N/1000N;
→拉压试验速度0.01～300mm/min（12in/min）,速度精度±0.5%以内;
→可调拉伸试验行程0～360mm;
→位置分辨力0.033μm,位置控制精度±0.5%以内;
→试验荷载力精度±0.5%以内（2%～100%F.S）;
→试验采集频率1000Hz(10Hz～1000Hz可自设分点);
→试验机尺寸LWH≈700x300x430mm,WT <= 25kg;
→全数字闭环HRJ-Test英文版骨科研究实用微型生物力学试验机测控软件;

引用标准、文献文件:
5kN带柄股骨部件疲劳性能试验机;1kN/3kN/5kN椎间融合器生物力学性能试验机;HRJ-5kN金属接骨板弯曲疲劳性能试验机;5kN骨螺钉弯曲疲劳试验机;5kN骨针弯曲疲劳试验机;XHD-HSS肩膝关节肌腱韧带人工关节材料生物力学性能试验机;0.5N.m～200N.m微机控制接骨螺钉扭矩试验机;液晶全自动螺栓螺钉扭矩试验机;50kN～300kN骨科接骨板试验机;5N～20kN牙科骨水泥植入物力学试验机;1kN～10kN医疗器械疲劳寿命试验机系统;1kN～10kN外科植入物疲劳试验机;10N.m～200N.m医用螺丝刀扭矩疲劳测试仪;5000N水凝胶高分子材料拉伸性能测试仪;2kN～20kN医学橡塑制品拉伸测试仪;10kN～100kN生物材料部件构件拉扭试验机;医用接骨螺钉压力旋动扭矩自攻性能双位试验机;全髋关节膝关节假体磨损试验机;不锈钢餐具刀叉拉扭试验机;2000kN生物颗粒材料成型强度试验机;骨科植入物压扭疲劳试验机测试系统;5kN生物医学材料疲劳试验机;20N.m带锁髓内钉静态扭转试验机;300kN假体假肢关节力学试验机;预制颅骨板力学试验机;矫形用U型钉力学试验机;假肢结构检验试验配置测试系统;5kN树脂骨水泥弯曲疲劳试验机;400N肩膝关节肌腱力学试验机;大小鼠骨骼肌腱韧带损伤医学康复检测性能试验系统;椎间融合器生物力学疲劳性能试验机;ISO 9585;ISO 10328-1;ISO 6475;ISO 7206-4;ISO 7206-6;ISO 7206-8;ISO 7206-10;ISO 7206-13;ISO 14879-1;ISO 10334;ISO 8827;ISO 16429;ISO 14243-3:2014;ISO 5837-2;ISO 16402;ISO 4965;ISO 376;ISO 11491-2017;ISO 5832-1;ISO 5832-2;ISO 5832-3;ISO 5832-4;ISO 5832-5;ISO 5832-6;ISO 5832-7;ISO 5832-8;ISO 5832-9;ISO 5832-11;ISO 5832-12;ISO 13356;ISO 7348;ISO 7206-6;ISO 7206-8;ISO 7206-4;ISO 7207-1;ISO 14879-1;ISO 1099;ISO 5837-1;ISO 14602;ISO 14630;NF S94-063;BS EN 10002-1:ASTM F2193-07;ASTM F1582;ASTM F1798;ASTM F1839;ASTM E1942;ASTM E122;ASTM F1264-07;ASTM F138;ASTM E1823;ASTM F1611;ASTM A214M;ASTM A450M;ASTM E691;ASTM F86;ASTM F339;ASTM F383;ASTM F565;ASTM F622;ASTM F67;ASTM F136;ASTM F90;ASTM F452;ASTM F139;ASTM F75;ASTM F543;ASTM E467;ASTM E8M-04;ASTM F382;AMS 5050;SAE J524;YY 0459-2025外科植入物丙烯酸类树脂骨水泥;YY/T0809.10-2022外科植入物部分和全髋关节假体;组合式股骨头抗静载力测定;hrjtest;YY/T0809.13-2020带柄股骨部件头部固定抗扭转力矩的测定;YY/T0809.12髋臼杯形变测试方法;YY/T0809.4带柄股骨部件疲劳性能试验和性能要求;YY/T0809.6-带柄股骨部件颈部疲劳性能试验和性能要求;YY/T0810.1-2024外科植入物全膝关节假体胫骨托疲劳性能的测定;外科植入物全膝关节假体磨损载荷控制位移控制的磨损试验机的载荷和位移参数及相关试验环境条件;YY/T1426.2-2016/XG1-2023全膝关节假体的磨损测量方法;矫形外科用丙烯酸类树脂骨水泥弯曲疲劳性能试验方法;YY/T1503外科植入物金属接骨板弯曲疲劳性能试验方法;YY/T1504金属接骨螺钉轴向拔出力试验方法;YY/T1505外科植入物金属接骨螺钉自攻性能试验方法;YY/T1506外科植入物金属接骨螺钉旋动扭矩试验方法;YY/T1782-2021骨科外固定支架力学性能测试方法;YY/T0342接骨板弯曲强度和刚度的测定;YY/T0119.2脊柱植入物脊柱内固定系统部件第2部分金属脊柱螺钉;YY/T0119.3金属脊柱板;YY/T0119.5金属脊柱螺钉静态和疲劳弯曲强度测定试验方法;YY/T0959椎间融合器力学性能试验方法;YY/T0960椎间融合器静态轴向压缩沉陷试验方法;YY 0017骨接合植入物金属接骨板;YY/T096脊柱内固定系统组件及连接装置的静态及疲劳性能评价方法;YY/T1559脊柱植入物椎间盘假体静态及动态性能试验方法;YY 0018骨接合植入物金属接骨螺钉;YY/T0346-2022骨接合植入物金属股骨颈固定钉;YY/T0591金属带锁髓内钉;YY/T1655-2019骨接合植入物接骨板和接骨螺钉微动腐蚀试验方法;YY/T1435组织工程医疗器械产品水凝胶表征指南;YY/T1576组织工程医疗器械产品可吸收材料植入试验;YY/T1598-用于脊柱融合的外科植入物的骨修复或再生评价试验指南;YY/T1616生物材料支架性能测试指南;YY/T 0345.1外科植入物金属骨针通用要求;YY/T0345.3-2014克氏针;YY/T0662不对称螺纹和球形下表面的金属接骨螺钉机械性能要求和试验方法;YY/T1705髋关节假体陶瓷股骨头抗冲击性能测定方法;YY/T0651.1外科植入物全髋关节假体的磨损;YY/T0651.3轨道轴承型磨损试验机载荷位移参数及相关的试验环境条件;GB/T18375-2024下肢假肢的结构检验要求和试验方法;YY/T1924-2025;GB/T12417.2-2025;膝关节髋关节生物材料摩擦磨损疲劳试验系统;GB/T12417.1-2024;GB/T19701.1-2024;GB/T19701.2-2024;GB/T19701.5-2024;GB/T22750.1-2024;仿生髋关节膝关节磨损模拟试验机;GB/T22750.2-2024;GB/T23101.4-2023;GB 4234.2-2024;GB 4234.3-2024;GB 4234.7-2024;YY 0117.1-2024;YY 0117.2-2024;YY 0117.3-2024;
