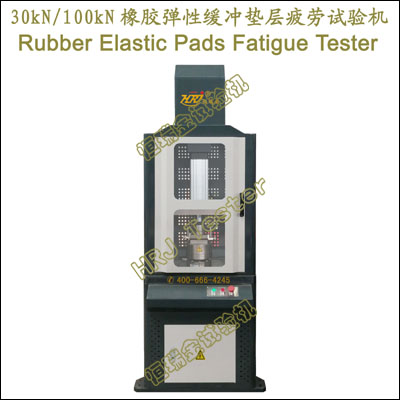

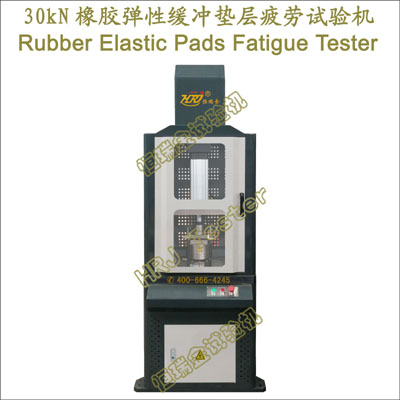

30kN橡胶弹性缓冲垫层疲劳试验机
Rubber Elastic Pads Fatigue Tester

功能参数:
→Q/CR785-2000高速铁路CRTS Ⅲ型板式无砟轨道橡胶弹性缓冲垫层,附录B弹性垫层疲劳试验方法。
→以恒定频率向CRTS Ⅲ型弹性垫层试样（尺寸为100mmx60mm）施加垂向循环荷载,经过3x106次荷载循环后,测定CRTS Ⅲ型弹性垫层的永久变形和静刚度变化率。
→向加载钢板施加5kN～25kN垂向循环荷载,加载频率4±1Hz,荷载循环3x106次。
→CRTS Ⅲ型弹性垫层3x106次荷载循环试验后,将被测弹性垫层试样取出。在23±2.0°C环境中静置24h。→在疲劳前原测量位置测量被测弹性垫层试样厚度,取平均值作为疲劳后被测弹性垫层试样的厚度,按公式计算疲劳后厚度变化率。
→按照附录A的试验方法进行静刚度测试,测得疲劳后刚度,按公式计算疲劳后刚度变化率。
→CRTS Ⅲ弹性垫层疲劳试验机荷载30kN。
→疲劳试验空间≥200mm,位移变形0.01mm。
→试验波形:正弦波,实时显示疲劳荷载-位移曲线。
→HRJ弹性垫层加载钢板支撑钢板120x80x40mm。
→HRJ高刚性高稳定性、无振动冲击流线型载荷机架,人体工程学设计。
→HRJ-Test橡胶弹性材料伺服疲劳试验软件/可定制国际版。
